Alchemie Endeavor™ Digital dyeing system
Step:
Colouration
Applications:
Synthetics
Cotton
And blends; polycotton and nylon and cotton
Replacement for:
Continuous & Exhaust dyeing
Alchemie Endeavour™ is an advanced digital dyeing system that combines high-speed nanodroplet jetting with near-infrared fixation, enabling accurate, single-pass fabric, roll-to-roll colouration. It eliminates the need for large dye baths, reducing water consumption and wastewater generation.
Savings vs Thermosol Process
-
Water82- 90 %
-
Electricity-30- -95 %
-
Steam**84- 86 %
-
GHG*84- 86 %
Savings vs Jet Dyeing Process
-
Water86- 92 %
-
Electricity-51- -128 %
-
Steam**66- 70 %
-
GHG*66- 70 %
Assessment Details
Substrate Tested:
100% Polyester
Benchmarks:
1. Pad-Thermosol
2. Jet exhaust dyeing
Location: Taiwan (innovative & conventional), Bangladesh (conventional)

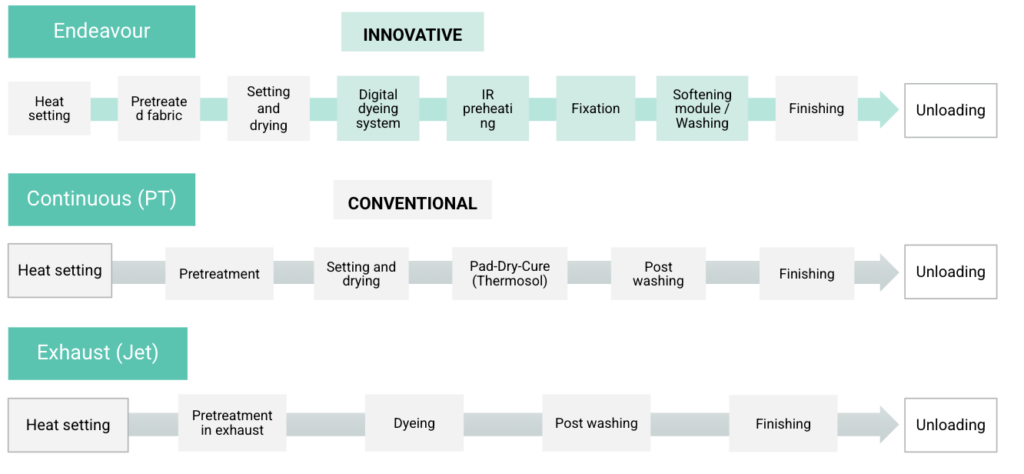

Scope:
Dyeing
Scope

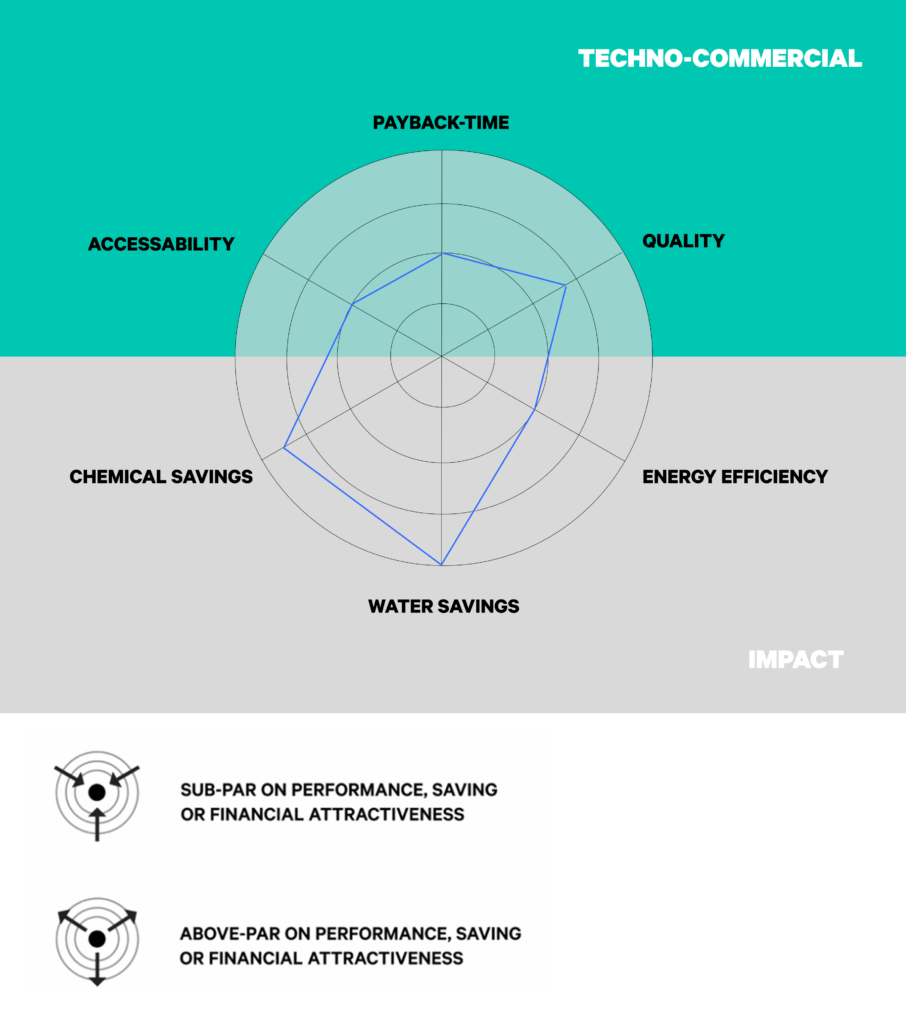

Results
Key Findings:
- Dye dosing is limited to 6 L/min per nozzle, restricting machine speed based on fabric GLM and reducing capacity.
- High dye viscosity or concentration can affect application consistency.
- The dyeing process is fully electric, which has resulted in the near-total elimination of steam and thermal energy consumption for this part of the operation.
- Core dyeing technology saves >90% water, but overall savings drop when pre- and post-treatments are included.
- Piezoelectric nozzles need regular cleaning, creating maintenance needs, while the machine already has a significant CAPEX.
Performance:
- Good colour consistency and reproducibility for the testes shade (±2% strength variation, ΔE = 0.14)
- Up to 4% variation across fabric width (right–left, centre–selvedge) indicates minor non-uniform application.
- Fastness results (rubbing, water, perspiration, DMF) rated good to excellent, meeting standard quality requirements.
- Trials were run with black shades, though performance may vary with more difficult colours like grey or turquoise.
Technology Maturity
-
LAB
-
DEMO
-
PRE INDUSTRIAL
-
INDUSTRIAL
Current Implementations
Countries: 3
Implementations: 2
